Noctua Expands NF-A20 Series with Four Versions for Diverse Cooling Needs

PWM, FLX, 5V PWM, and 5V models—Noctua’s 200mm fan series now offers tailored solutions for PC enthusiasts and specialized applications alike.

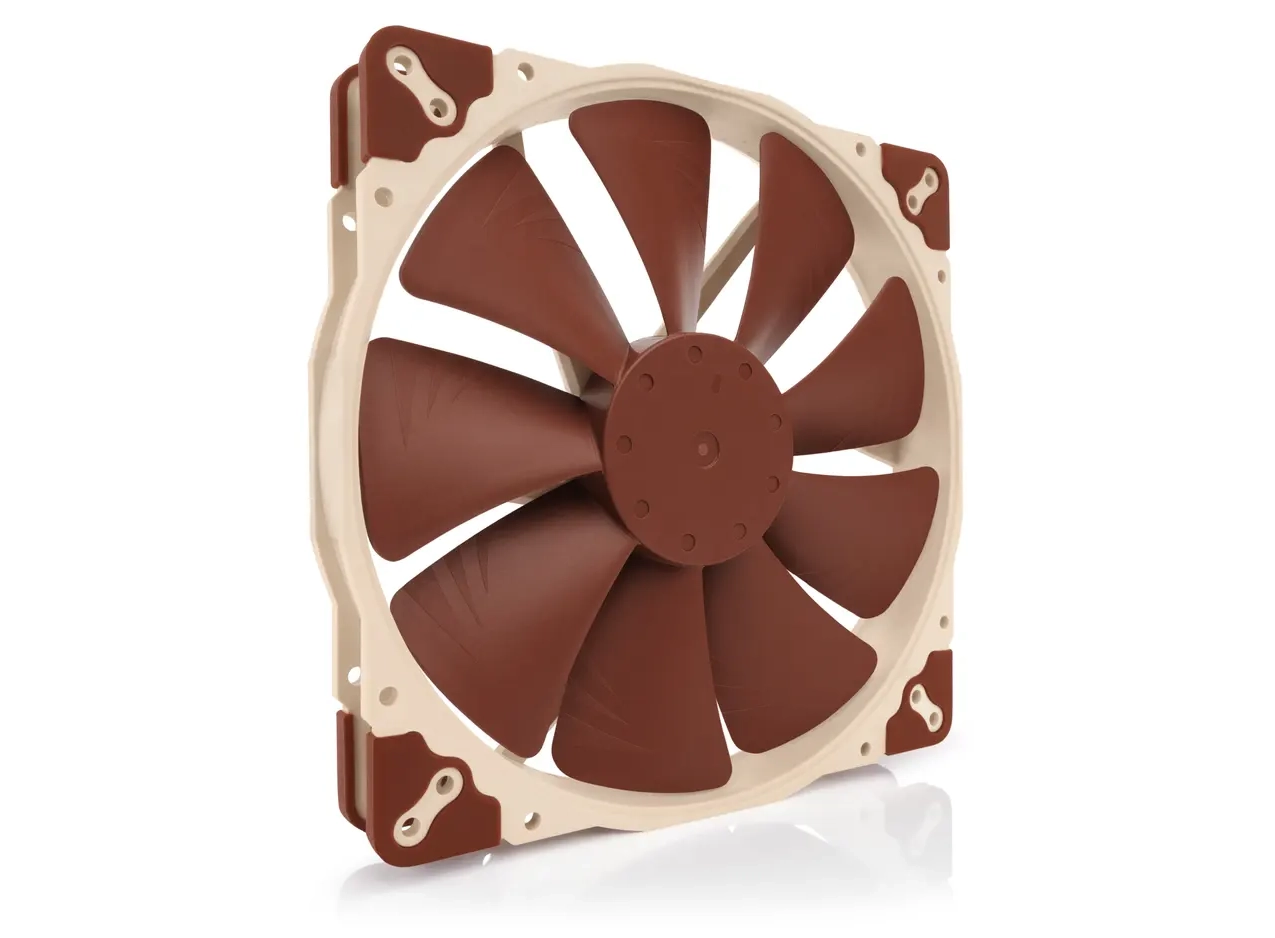

Noctua has unveiled a comprehensive lineup of NF-A20 200mm fans, introducing four distinct versions: PWM, FLX, 5V PWM, and 5V. Each model incorporates Noctua’s signature advanced acoustic optimization technologies, ensuring that whether for a high-performance PC build, a 3D printer, or an industrial application, users can select a fan that precisely matches their voltage and control requirements.

The following table compares the key specifications and typical use cases for the four NF-A20 versions:

—

01. Core Technologies for Quiet Cooling

Across all four versions, the NF-A20 series leverages Noctua’s Advanced Acoustic Optimization (AAO) framework. This includes a Stepped Inlet Design that adds turbulence to the incoming airflow, smoothing the transition from laminar to turbulent flow to reduce intake noise and improve suction capacity, particularly in space-restricted environments.

The fan impeller features Flow Acceleration Channels on the suction side. By accelerating airflow at the critical outer blade regions, this design reduces flow separation, leading to greater efficiency and lower vortex noise. Furthermore, Inner Surface Microstructures within the frame create a boundary layer that the blade tips move through, significantly suppressing flow separation from the blades for reduced noise and improved airflow.

A key contributor to the fan’s quiet operation and longevity is the SSO2 (Second-Generation Self-Stabilising Oil-pressure) Bearing. This bearing system features a magnet placed closer to the axis for enhanced stabilisation and precision, contributing to an exceptional Mean Time To Failure (MTTF) of over 150,000 hours. Integrated anti-vibration pads made from extra-soft silicone minimize the transmission of minute vibrations.

02. Design and Compatibility

The NF-A20 is equipped with three sets of mounting holes (154x154mm, 110x180mm, and 170x170mm). This thoughtful design ensures broad compatibility, allowing it to replace not only standard 200mm fans but also many 230mm and 250mm fans found in various cases and applications.

The 5V and 5V PWM versions are particularly notable for their versatility beyond traditional PCs. They include a USB power adapter cable, enabling users to power the fan conveniently from power banks, USB host ports, or standard USB power supplies. For integrating into devices with proprietary connectors, these versions come with an OmniJoin™adapter kit and feature integrated polarity protection to prevent damage from accidental reverse connection.

03. Target Applications and Market Position

The different models cater to distinct user needs. The PWM version is ideal for PC enthusiasts with modern motherboards, allowing for automatic, temperature-dependent fan speed control between approximately 350 and 800 RPM for an optimal balance of cooling performance and silence. The FLX version, with its included low-noise adapters, offers a simpler solution for setting a fixed, reduced speed where constant, quiet operation is the priority.

The 5V PWM and standard 5V versions significantly expand the fan’s utility into non-PC domains. They are well-suited for use in 3D printers—like the Prusa i3 MK3 mentioned by Noctua—as well as for cooling home entertainment equipment, network attached storage (NAS) devices, or even for creating custom ventilation solutions in home or automotive settings, thanks to their flexible 5V power options.

Noctua backs all NF-A20 models with a 6-year manufacturer’s warranty, underscoring the company’s confidence in the product’s quality and durability.

—

The expansion of the Noctua NF-A20 series to include PWM, FLX, 5V PWM, and 5V versions provides exceptional choice for users seeking high-quality, quiet 200mm cooling. Whether for a silent high-performance PC, a reliable 3D printer, or a custom project, Noctua offers a tailored fan solution that combines proven acoustic optimization technologies with flexible installation features. This strategic diversification allows Noctua to serve a wider market while maintaining its reputation for premium performance and reliability.
