SilverStone Shark Force 160 ARGB Fan: 160mm Cooling with 140mm Mounting

160mm diameter, 160 CFM airflow, 140mm mounting compatibility

SilverStone today introduced the Shark Force 160 ARGB fan (Model: SF160B), a case fan that features a 160mm diameter impeller but is designed to mount in standard 140mm fan vents. This innovative design offers the increased airflow of a larger fan while maintaining compatibility with common case configurations, provided there is sufficient clearance around the mounting area for the slightly larger frame.

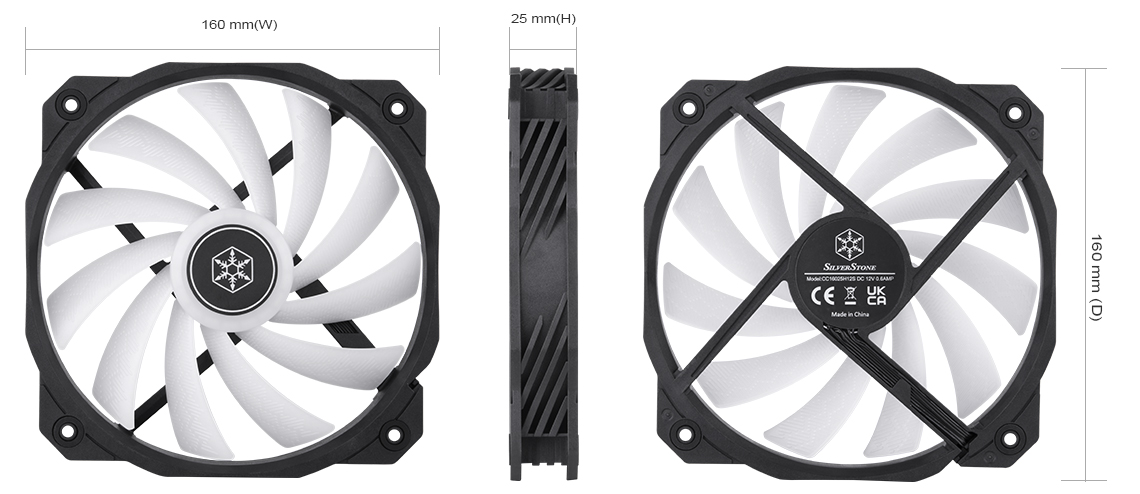

The fan delivers a maximum airflow of 160 CFM and a static pressure of up to 2.21 mm H₂O, with a maximum noise level of 38.1 dBA. It operates at speeds up to 1,600 RPM and utilizes a fluid-dynamic bearing for smoother and quieter operation. Its overall dimensions are 160 x 160 x 25 mm, and it weighs 220 grams.

—

01 Unique Design Solves Compatibility Challenge

The key innovation of the Shark Force 160 ARGB is its 160mm impeller diameter paired with a frame designed for 140mm mounting points. This allows users to benefit from the superior airflow of a larger fan without needing a case specifically designed for 160mm fans, as long as the 140mm fan vent has enough surrounding space.

Independent tests have confirmed that the fan can be successfully installed in cases like the Jonsbo D41, which has top fan positions that accommodate it well.

02 Performance and Practical Features

Despite a maximum rotational speed of 1,600 RPM, which is not exceptionally high for a case fan, the Shark Force 160 achieves its significant airflow thanks to a powerful 0.6A drive current and the large surface area of its blades. SilverStone states that the fan can run quietly under light loads while providing strong cooling performance when needed.

The fan incorporates 11 elongated blades with textured patterns inspired by shark skin, intended to guide airflow more efficiently and reduce noise. For connectivity, it uses a 4-pin PWM connector for fan control and a 3-pin ARGB (5V LED) connector for lighting, compatible with major motherboard manufacturers’ lighting control software. A notable feature is the modular wiring port, which simplifies cable management by allowing users to choose their preferred connection method.

03 Market Context and User Consideration

In the realm of PC cooling, larger fans can often move more air at lower noise levels compared to smaller fans working harder to achieve similar airflow. The Shark Force 160 ARGB fits into this trend by offering a large-format cooling option with broader case compatibility.

Potential buyers should note that while the fan provides substantial airflow, some independent observations indicate that it can exhibit noticeable vibration at high speeds due to its long, slender blades. Furthermore, actual testing of the Shark Force 160 ARGB showed a maximum airflow of 148.3 CFM and a static pressure of 2.49 mm H₂O, which are slightly different from the official specifications but still represent strong performance for this category.

—

The SilverStone Shark Force 160 ARGB fan presents a compromise between size, performance, and compatibility. Its ability to fit a 160mm impeller into a mounting frame suitable for many standard 140mm vents makes it a noteworthy option for PC builders seeking enhanced cooling without replacing their existing case.

Priced at 119 RMB in the Chinese market, it offers a distinctive solution for enthusiasts looking to optimize their system’s thermal performance.
