Thermaltake Launches CT200 PC Cooling Fan: 200mm Design with Innovative Daisy-Chain Connectivity
Large-scale cooling, simplified cabling—Thermaltake’s new CT200 fan series combines a 200mm form factor with a daisy-chain design for efficient airflow and clean builds.
Thermaltake has introduced the CT200 PC Cooling Fan, a new generation of PWM fans designed to deliver high airflow and straightforward installation for a variety of PC builds. Available in both non-lit and ARGB versions, as well as black or white color options, the series aims to provide users with flexible cooling solutions that emphasize performance and ease of use.
The following table summarizes the key specifications of the fan:
| Feature | Specification |
|---|---|
| Fan Size | 200 x 200 x 30 mm |
| Fan Speed | 500 ~ 900 RPM (PWM Controlled) |
| Maximum Airflow | 131.6 CFM |
| Static Pressure | 1.92 mm-H₂O |
| Noise Level | ≤ 27.2 dB(A) |
| Bearing Type | Hydraulic Bearing (HDB) |
—
01. Performance and Design Craftsmanship
The CT200 series stands out with its 200mm x 200mm x 30mm frame, a relatively uncommon size in the market that allows it to move a significant volume of air. The fan incorporates nine specially tuned blades engineered to maximize airflow while keeping operational noise low. It delivers a maximum airflow of 131.6 CFM and a static pressure of 1.92 mm-H₂O, making it effective for both case ventilation and radiator use.
A hydraulic bearing (HDB) ensures quiet operation and contributes to the fan’s rated lifespan of 40,000 hours. To further dampen vibration and enhance stability, round anti-vibration rubber pads are installed at all four corners of the fan.
02. Innovative Daisy-Chain Cable Design
A central innovation of the CT series is its cable-integrated daisy-chain design. This feature allows multiple fans to be connected directly to one another, which significantly reduces the number of 4-pin PWM and 3-pin ARGB ports required on the motherboard. It also shortens the total cable length between fans, offering greater flexibility and contributing to a cleaner, less cluttered interior.
For the ARGB version, Thermaltake includes a dedicated connector clip to secure the 5V ARGB cable, preventing accidental disconnection when fans are linked together.
03. Lighting and Compatibility

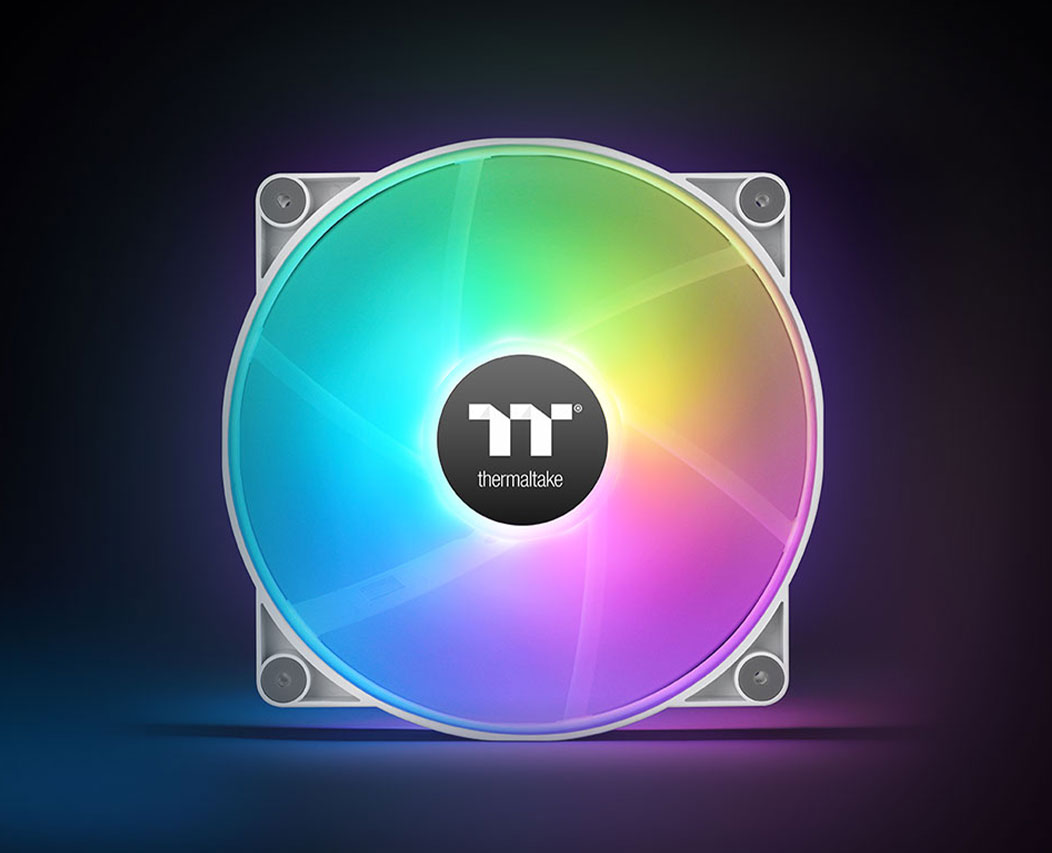

The ARGB version of the CT200 fan is equipped with nine independent addressable LEDs capable of displaying 16.8 million colors. The lighting effects can be fully customized and synchronized using popular motherboard software from vendors like ASUS, MSI, Gigabyte, ASRock, and Biostar. This allows for seamless integration into a unified RGB ecosystem. It is noted that the ARGB version requires control via motherboard software and does not include a separate hardware controller.
—
Thermaltake’s CT200 series addresses the need for large-size, high-airflow cooling that is also easy to install and manage. Its distinctive daisy-chain design tackles the common pain point of cable clutter, while its performance specs make it a compelling option for users seeking a balance between cooling efficiency, quiet operation, and aesthetic customization.
